eSORBA® SSP - SS L Series

Documents

Technical Data Sheets

Size
PDFSS L-SD Data SheetEnglish72 KB

Applications
  • Main and Sub-LCD gasket for cellular phones, PDA's, and small game devices.
  • Vibration dampening around speakers, microphones and vibration motors in cellular phones
  • Shock absorption pad for Notebooks and small electronic devices

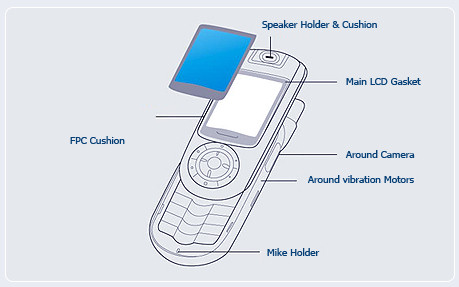

Representative Applications

Technical Data
Properties SS L series Test method
Product code SS LxxxSD xxx : thickness
Thickness (mm) 0.5~2.0 Thickness Gauge
Density (g/§¨) 0.18 ASTM D3574-05
Standard Color black
CFD*1)(kgf/§²) 25% 0.04 ASTM D3574-05
50%
Compression
Set (%)
23¡É 0.3 ASTM D3574-05
70¡É 2.5 ASTM D1667-76
Ball rebound(%) 29 ASTM D3574-05
Dimensional Stability(%)*2) MD 0.14 22 hrs at 80¡É
TD 0.02
Outgas*3) (%) 0.2 ASTM E 595-06
Water Absorption*4) (%) 2.0 SAE AMS 3568A
at 35¡É, 85% RH
Embrittlement (¡É) -43 SUM-10*5)
Recommended Upper
Temperature (¡É)
70 SAE J-2236
Resistivity Surface (¥Ø/¡à) 1X111 ASTM D257-92
Volume
(¥Ø-cm)
1X111
*1) Compression Force Deflection (CFD)
*2) 22hrs at 80¡É
*3) 24hrs at 125¡É and below 7X10-3 Pa
*4) Weight difference before and after at 23¡É, 95% relative humidity for 28 hrs
*5) SK utis method
* SSP series is PET-supported grade. Therefore, mechanical properties
* such as tensile strength and elongation are same with those of PET.

Availability
Thickness (mm) Roll Size (mmXm) Product Code SS L
0.5 500X100 SS L050SD S
0.6 SS L060SD M
0.7 SS L070SD S
0.8 SS L080SD M
1.0 500X50 SS L100SD S
1.2 SS L120SD S
1.5 SS L150SD S
2.0 SS L200SD S


Packing
Packing1 roll each , wrapped by PE bag in a carton box
Export Packing240 ~ 288 boxes in a 20ft dry container

Please contact if other thickness is needed.

Storage
Storage
