eSORBA® SSP - SS F Series

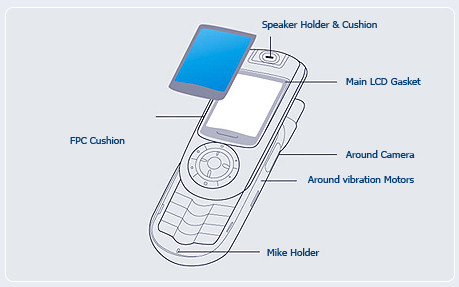

- Main and Sub-LCD gasket for cellular phones, PDA's, and small game devices.
- Vibration dampening around speakers, microphones and vibration motors in cellular phones
- Shock absorption pad for Notebooks and small electronic devices
| Product code |
SS FxxxSD |
xxx : thickness |
| Thickness (mm) |
0.5~2.0 |
Thickness Gauge |
| Density (g/§¨) |
0.25 |
ASTM D3574-05 |
| Standard Color |
black |
|
| CFD*1)(kgf/§²) |
25% |
0.07 |
ASTM D3574-05 |
| 50% |
0.15 |
|
Compression
Set (%) |
23¡É |
0.5 |
ASTM D3574-05 |
| 70¡É |
3.0 |
ASTM D1667-76 |
| Ball rebound(%) |
29 |
ASTM D3574-05 |
| Dimensional Stability(%)*2) |
MD |
0.14 |
22 hrs at 80¡É |
| TD |
0.02 |
| Outgas*3) (%) |
0.2 |
ASTM E 595-06 |
| Water Absorption*4) (%) |
2.6 |
SAE AMS 3568A
at 35¡É, 85% RH |
| Embrittlement (¡É) |
-43 |
SUM-10*5) |
Recommended Upper
Temperature (¡É) |
70 |
SAE J-2236 |
| Resistivity |
Surface (¥Ø/¡à) |
1X111 |
ASTM D257-92 |
Volume
(¥Ø-cm) |
1X111 |
*1) Compression Force Deflection (CFD)
*2) 22hrs at 80¡É
*3) 24hrs at 125¡É and below 7X10-3 Pa
*4) Weight difference before and after at 23¡É, 95% relative humidity for 28 hrs
*5) SK utis method
* SSP series is PET-supported grade. Therefore, mechanical properties
* such as tensile strength and elongation are same with those of PET.
| 0.5 |
500X100 |
SS F050SD |
S |
| 0.6 |
SS F060SD |
M |
| 0.7 |
SS F070SD |
S |
| 0.8 |
SS F080SD |
M |
| 1.0 |
500X50 |
SS F100SD |
S |
| 1.2 |
SS F120SD |
S |
| 1.5 |
SS F150SD |
S |
| 2.0 |
SS F200SD |
S |
| Packing | 1 roll each , wrapped by PE bag in a carton box |
| Export Packing | 240 ~ 288 boxes in a 20ft dry container |
Please contact if other thickness is needed.
