eSORBA® TF - SR-L-TF Series

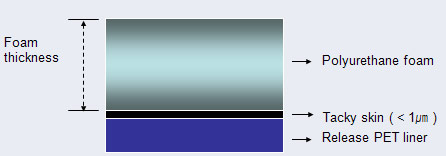

Structure:
| Product Code |
SR LxxxTF | xxx : thickness |
Thickness
(mm) |
0.4~2.0 | Thickness Gauge |
Density
(g/㎤) |
0.16 | ASTM D3574-05 |
| Standard Color |
Black |
| CFD(kgf/㎠) |
25% | 0.07 | ASTM D3574-05 |
| 50% | 0.13 |
Compression Set
(%) |
23℃ | 0.7 | ASTM D3574-05 |
| 70℃ | 3.0 | ASTM D1667-76 |
| Outgas (%) | 0.32 | ASTM E 595-06 |
| Embrittlement (℃) |
-26 | SUM-10 |
Recommended Upper
Temperature(℃) | 70 | SAE J-2236 |
| Resistivity | Surface
(Ω/□) | 1X1012 | ASTM D257-92 |
Volume
(Ω-cm) | 1X1011 | ASTM D257-92 |
S = Standard; M = Made to Order
| 0.4 |
500X100 | SR L040TF | S | 0.06 |
| 0.5 |
500X100 | SR L050TF | S | 0.08 |
| 0.6 |
500X100 | SR L060TF | M | 0.10 |
| 0.7 |
500X100 | SR L070TF | S | 0.11 |
| 0.8 |
500X100 | SR L080TF | M | 0.13 |
| 1.0 |
500X50 | SR L100TF | S | 0.16 |
| 1.2 |
500X50 | SR L120TF | S | 0.19 |
| 1.5 |
500X50 | SR L150TF | M | 0.24 |
| 2.0 |
500X50 | SR L200TF | M | 0.32 |
| Packing | 1 roll each , wrapped by PE bag in a carton box |
| Export Packing | Max 240 boxes in a 20ft dry container |
Please contact if other thickness is needed.
